Vending machine electrical requirements: outlet, circuit and GFCI rules

What electrical service does each type of vending machine need?

Each type of vending machine needs a different electrical service: a snack machine without refrigeration runs on about 1 amp, a refrigerated drink or combo machine on 7 to 11 amps, and heated, frozen or robotic machines on 16 to 25 amps, often on a circuit of their own. Every vending machine in the table also needs GFCI protection.

Sources: Seaga’s EnVision specifications and Infinity manual; the University of Maryland’s placement specifications; Sweet Robo’s cotton candy and soft-serve pages. Smart Industries’ Toy Chest crane page lists a 220-volt transformer option but no rating.

To weigh power against pay, see which machine types pay a host most.

Does a vending machine need a dedicated circuit?

A vending machine needs a dedicated circuit only when its manufacturer or its load calls for one; the National Electrical Code’s vending-machine rule, section 422.5, deals with shock protection, not circuits. The manufacturer’s instructions carry legal weight anyway: NEC 110.3(B) requires listed equipment to be installed according to them, and OSHA’s workplace rule, 29 CFR 1910.303(b)(2), says the same.

IAEI Magazine calls 110.3(B) the place inspectors check installations against the maker’s instructions, so VendNet’s request in its Combo II manual for an isolated or dedicated noise-free circuit for its electronic controls is part of a correct installation.

Two code limits decide when the load calls for a circuit of its own. On a 15- or 20-amp circuit with more than one outlet, NEC section 210.23 caps any single plug-in machine at 80% of the circuit’s rating, 12 amps on 15 and 16 on 20 (NFPA 70 section 210.23, UpCodes). On any circuit, shared or not, a continuous load, defined as a maximum current expected to continue for 3 hours or more, may use no more than 80% of the breaker, because sections 210.19(A)(1) and 210.20(A) size the wire and breaker at 125% of it (EC&M’s Code Q&A on branch-circuit sizing).

Whether a heated, refrigerated or robotic machine that runs all day counts as a continuous load is for your electrician and inspector to decide (IAEI Magazine on continuous loads). Give the electrician the nameplate rating and let them size the circuit from it.

What does the National Electrical Code say about vending machines?

The National Electrical Code requires ground-fault circuit-interrupter (GFCI) protection for vending machines, meaning a device that cuts power when it senses current leaking to ground, such as through a person. Since the 2017 edition the rule has sat in section 422.5, alongside drinking water coolers and tire inflation machines; editions through 2014 put it in section 422.51, the number older guidance still cites.

The scope has shifted between editions:

• Which appliances. The 2020 text lists vending machines among appliances rated 150 volts or less to ground and 60 amperes or less that need Class A GFCI protection (Leviton’s code commentary). The 2017 edition used a 250-volt limit (Leviton, 2017). The 2023 edition keeps vending machines on the 150-volt list (ExpertCE’s 422.5 summary).
• The 2026 edition. Code-Making Panel 17’s October 2024 second-draft working record keeps vending machines on the list, as 422.5(B), with the type-and-location rules in 422.5(C). That record is marked not final, so have your inspector confirm the published 2026 text.

Section 422.51, as quoted by IAEI Magazine, required cord-connected machines made or remanufactured on or after January 1, 2005 to carry a GFCI in the plug or within 12 inches of it, and older machines to use a GFCI-protected outlet; the 2014 edition added hard-wired machines. That 2005 date still tells you which machines were built with a cord GFCI.

The rule exists because of deaths. In 2002, U.S. Consumer Product Safety Commission staff reported three electrocutions involving vending machines since 1995, two of them children, each after a live wire faulted to the cabinet and the ground path was damaged or inadequate (meeting log). Staff proposed the plug-or-cord GFCI and the 2005 date. Our guide to vending machine liability covers who answers when a machine injures someone.

The code defines a vending machine as a self-service device that dispenses products without being refilled between sales and takes coins, bills, tokens, cards, keys or other payment. That appears to take in a cotton candy robot; whether a claw game qualifies is a question for your inspector.

States adopt each edition on their own schedule. Washington, for one, adopted the 2026 NEC to take effect on December 31, 2026, replacing the 2023 edition (Washington State Register 25-23-069). The local inspector, the authority having jurisdiction, has the final word.

General information, not electrical or legal advice. Codes checked on October 5, 2026; have a licensed electrician do the work.

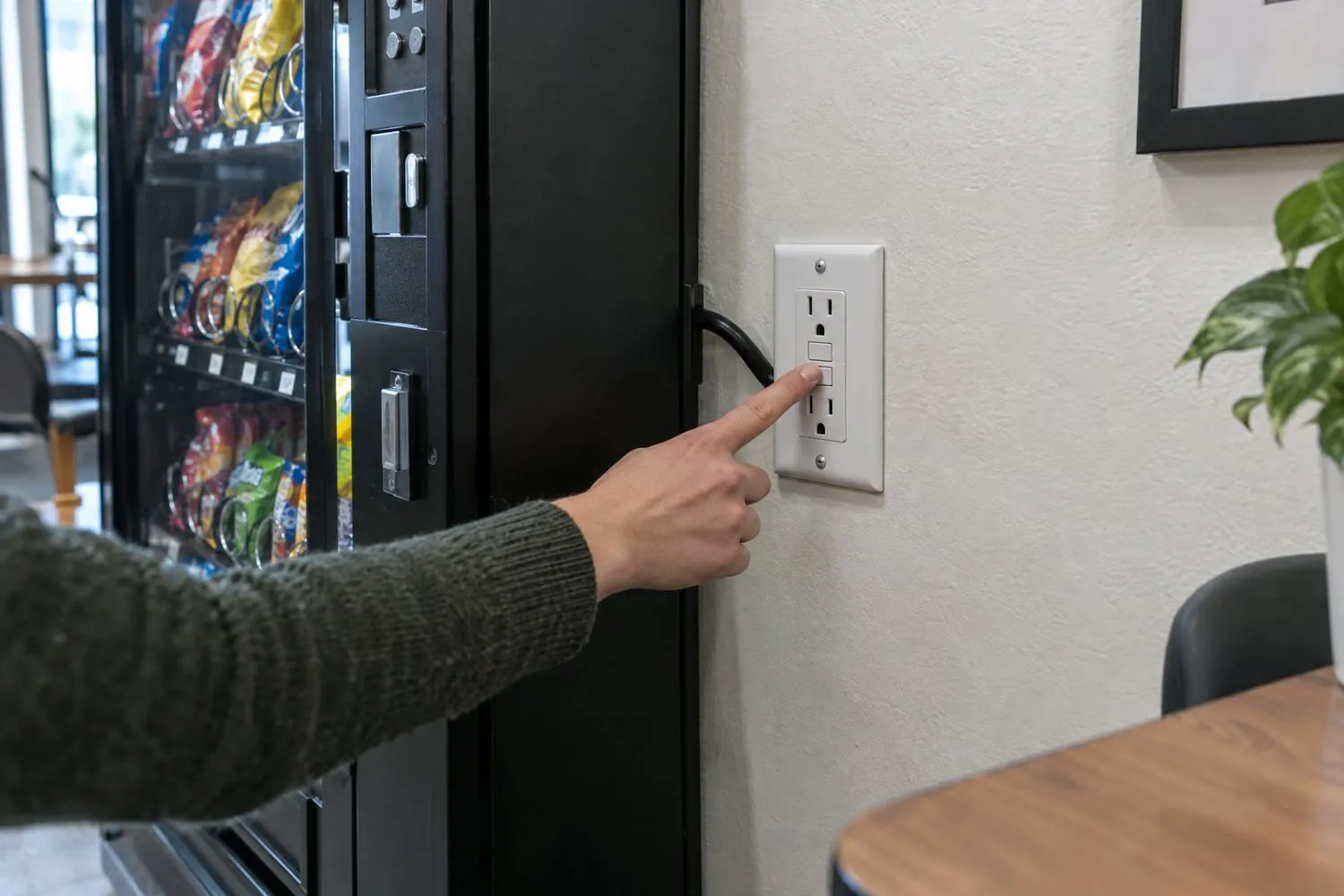

Where should the GFCI be, and how do you check for one?

The GFCI protecting a vending machine can be in the breaker, in an outlet or device on the circuit, in the plug, in the cord within 12 inches of the plug, or built into the machine, but wherever it sits it must be readily accessible. Under the 2023 definition, that means staff can reach it without tools, ladders or moving obstacles.

Seaga’s refrigerated Infinity ships at 703 to 764 pounds and its 39-inch model covers 9.75 sq ft of floor, so a GFCI outlet behind one fails the 2023 definition of readily accessible in practice. The fix is a GFCI breaker in a panel staff can open, or a GFCI device mounted beside the machine that protects the outlet behind it.

Check for protection in three places:

1. The plug end of the cord. A GFCI module with TEST and RESET buttons in the plug, or on the cord within 12 inches of it, protects the machine wherever it is plugged in.
2. The outlet. A GFCI receptacle has its own TEST and RESET buttons.
3. The panel. A GFCI breaker has a test button; your electrician can confirm which circuit it serves.

Test it monthly. The 2014 proposal that made accessibility mandatory noted that GFCI makers typically call for monthly testing, which needs a reachable button. Pressing TEST should cut the machine’s power; RESET brings it back.

Our view: insist that the GFCI sits where your staff can see and test it, and write the monthly test into the service agreement.

What outlet does a vending machine need?

A vending machine should plug straight into a grounded, correctly wired outlet close to where it stands, never into an extension cord. VendNet’s combo manual wants the outlet within 6 feet and rules out extension cords, and OSHA’s rule on flexible cords, 29 CFR 1910.305(g), bars them as a substitute for fixed wiring or run through walls, ceilings, floors or doorways.

• Grounded and polarized. VendNet asks installers to check voltage, polarity and ground before connecting, expecting 110 to 130 volts between hot and neutral, and to repeat the checks every 6 months.
• Rated for the load. A robot drawing up to 20 amps at 110 volts, or any 220-volt machine, needs a circuit and receptacle an electrician sizes for it.

Do outdoor, kitchen or garage locations change the requirements?

Outdoor, kitchen, garage and other wet-prone spots add a second layer, because NEC section 210.8(B) requires GFCI protection for receptacles in those areas of commercial buildings whatever is plugged in. The 2020 list, in Leviton’s summary, includes kitchens, rooftops, outdoors, within 6 feet of a sink, indoor damp and wet locations, locker rooms with showers, garages and service bays, and laundry areas.

The 2023 edition adds receptacles near aquariums and bait wells and in buffet and similar food-prep areas, according to IAEI Magazine. If your venue is a gym or a laundromat, ask your electrician whether the locker-room or laundry-area entries cover your spot.

Seaga labels its EnVision and standard Infinity models indoor only, VendNet’s combo manual bars spots above 90°F where humidity reaches 65%, and 66 of the 69 machines on ENERGY STAR’s certified list carry an indoor-only rating. An outdoor placement needs an outdoor-rated machine, such as Seaga’s Infinity Xtreme, and an electrician-installed outdoor outlet.

Who pays for a new outlet or circuit?

Who pays for a new outlet or circuit is a contract question, and the two published documents we checked point in opposite directions. Bemidji State University’s host-side policy makes the machine’s owner responsible for installing circuits when existing ones are missing or inadequate, while PinPoint Vending’s operator-side template assumes the host already has a standard 120-volt outlet within 6 feet.

The Bemidji State policy is a fair starting position for any host: the circuit exists because of the operator’s machine and its sales.

If the vending company will not pay outright, get a licensed electrician’s written quote, split the cost in writing and lengthen the first term so the work pays for itself. Our agreement clause guide has wording for the installation clause, our electricity cost guide covers the running cost, and our guide to choosing a vending company covers the rest of the deal.

What should you check before the electrician arrives?

Before the electrician arrives, check the machine’s nameplate, the outlet you plan to use and what else shares its circuit, so the visit ends with a working machine rather than a second appointment.
